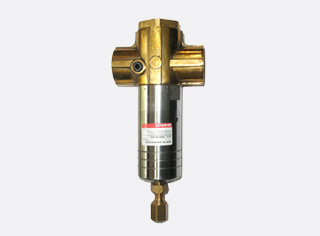

Brass Regulators

brass regulators

FEATURES :

  •  All brass construction.
  •   Developed Specially for PET Moulding machine building application.

PARAMETERS SPECIFICATIONS
Fluid Compressed Air
Pipe Sizes 3/4”, 1”, 1 /4 ”
Port Thread BSP Parellel - Standard
NPT - Optional
Construction
Adjustment
Piston Type
Adj. Screw with lock nut
Material of Construction : Body, Cap Valve, Piston, Adj. Screw,Nut Bonnet, Valve Spring, Valve Stem Regulating Spring BRASS
SS 304
Spring Steel
Elastomers NITRILE - Standard
Maximum Inlet Pressure 870 psi ( 60 bar)
Regulated outlet pressure ranges 17 - 175 psi (1.20 to 12 bar)
32 - 320 psi (2.20 to 22 bar)
50 - 500 psi (3.50 to 35 bar)
72 - 725 psi (5.00 to 50 bar)
Gauge Port 1/4
Pressure gauge connection Back
Standard Nominal Flow Rate (at 20 bar supply pr. and 4 bar pr.drop of 10 bar sec.pr.) 176 scfm (83 dm /s) CV(3.32)
Note: Pressure gauge will not have CE, EAC and SIL3 approval.
