FEATURES :

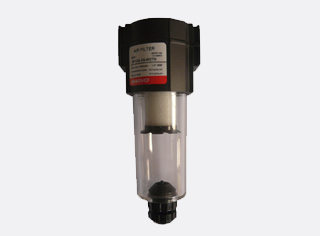

- Shavo's VayuTM Series Compact range general purpose filter removes upto 99% of the liquid water.
- Design of the filter element gives both surface and depth filtration for cleaner air.
- Choice of elements, bowls and drains to suit all applications.
| Parameters | Specifications | |
| Pipe Threads | G 1/4, 3/8 Parallel (F) | - Standard |
| BSPTr. / NPT | - Optional | |
| Filter Element Size | 5, 25, 40 micron | |
| Element Material | Plastic (Polypropylene) | - Standard |
| Sintered Bronze | - Optional | |
| Body Material | Al. Alloy die cast | |
| Bowl Material | Transparent Polycarbonate bowl with bowl guard | - Standard |
| Al. Alloy Metal with sight glass | - Optional | |
| Maximum inlet Pressure | with P.C. Bowl Manual and Automatic Drain |
: 150 psig (10.5 bar) |
| with Metal Bowl Manual Drain | : 250 psig (17.5 bar) | |
| with Metal Bowl Automatic Drain | : 150 psig (10.5 bar) | |
| Maximum Operating Temperature (ambient) |
With PC Bowl | 500C (1250F) |
| with Metal Bowl | 800C (1750F) | |
| Standard Nominal Flow Rate at 6 bar (87 PSI) supply pressure and 1 bar (14.5 PSI) pressure drop | G 1/4 | 84 scfm (42 dm3 / sec) CV (1.66) |
| G 3/8 | 92 scfm (43 dm3 / sec) CV (1.73) | |
| Drain | Manual | Standard |
| Automatic | Optional | |
+ Values indicated are with 40 micron elements, with finer elements these values will be lower.
Note: Automatic Drain and Semi-Automatic drain available with Nitrile Elastomer Only.
| Size | Flow (dm3/S) | Element (um) |
Drain | Bowl | Model |
|---|---|---|---|---|---|
| G 1/4 | 84 scfm (42 dm3 / sec) |
25 | Auto / Manual | Transparent Transparent |
SF 15G-2G-A2TN SF 15G-2G-M2TN |
| G 3/8 | 92 scfm (43 dm3 / sec) |
25 | Auto / Manual | Transparent Transparent |
SF15G-3G-A2TN SF15G-3G-M2TN |
OPTION SELECTOR :
