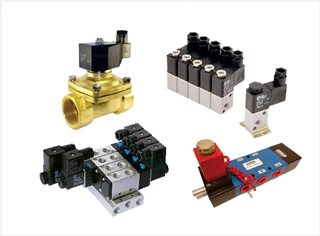

Pneumatic Solenoid Valves

Various Solenoid & Manually Operated Valves are available with variety of designs & dimensions to suit application requirements. These valves are in puppet as well as spool design. Puppet design is recommended where flow requirement is more & air quality is not consistent.

Following range is available in Solenoid Valves with Puppet & Spool designs with various dimensions:

Sr. No. Description Std. Sizes
1 5 port 2 position Single Solenoid Valves 1/8”, ¼”, 3/8”, ½”, ¾”
2 5 port 2 position Double Solenoid Valves 1/8”, ¼”, 3/8”, ½”, ¾”
3 5 port 3 position Double Solenoid Valves (PHN & PRN) 1/8”, ¼”, 3/8”, ½”, ¾”
4 3 port 2 position Direct Acting Valve 1/8”, ¼”
5 2port 2 position Direct Acting Valve 1/8”, ¼”

Manually & Pilot Operated Valves (Spool Design)

Sr. No. Description Std. Sizes
1 5 port 2 position / 5 port 3 position Hand Lever Valves ¼”, 3/8”, ½”, ¾”
2 5 port 2 position Push Button Valves (Spring Return / Detent) 1/8”, ¼”, 3/8”, ½”, ¾”
3 5 port 2 position Roller Operated Valves 1/8”, ¼”, 3/8”, ½”, ¾”
4 5 port 2 position / 5 port 3 position Double Pilot Valves ¼”, ½”, ¾”
5 5 port 2 position Single Pilot Valves ¼”, ½”, ¾”
6 5 port 2 position Disc Rotary Valves (Handle / Knob Type) ¼”,3/8”, ½”, ¾”, 1”

These valves can be fitted on gang Manifold with common inlet, where no. of connections & space can be saved. These manifolds are available for required no. of valves.

Pneumatic Accessories

Various Accessories which enhance the working of pneumatic system are as follows :

Sr. No. Description Std. Sizes
1 Flow Control Valve 1/8” ¼”, 3/8”, ½”, ¾”, 1”
2 Quick Exhaust Valve ¼”, ½”
3 Quick Release Coupling 1/8” ¼”, 3/8”, ½”, ¾”, 1”
4 Signal Braker Valve 1/16”
5 Non Return Valve 1/8” ¼”, 3/8”, ½”, ¾”, 1”
6 Push Button Valve ¼”
7 Shut Off Valves 1/8” ¼”, 3/8”, ½”, ¾”, 1”

We specialize in custom build valves, where standard designs are modified to suit customer requirements. We have manufactured import substitute special valves for no. of Textile Mills.
