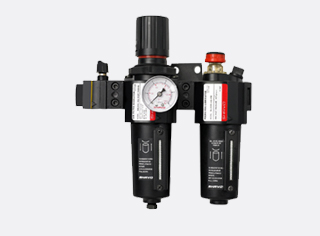

Combination Units

Shavo Navigate Other Products

FEATURES :

  •  Combinations of filter-regulator and lubricators can be ordered as pre-assembled units
  •  Complete control of filtration regulation and lubrication at a single point
  •  Quick release bayonet bowl
  •  Compact modular design
  •  Micro-mist versions for most general purpose pneumatic applications

TECHNICAL DATA :

  •  Medium: Compressed air only
  •  Inlet pressure:
    Transparent bowl: 10 bar max
    Metal Bowl: 17 bar max
  •  Ambient temperature:
    Transparent bowls : 50°C
    Metal bowl: 80° C
  •  Consult our Technical Service for use below +2°C

MATERIALS :

  •  Body: Aluminium alloy
  •  Bowls: Polycarbonate/Aluminium
  •  Bowls: Polycarbonate/Aluminium
  •  Elastomers: Nitrile

ACCESSORIES :

  •  Wall Mounting Bracket
  •  Shut-off Valve
  •  40mm Pressure Gauge
brass regulators
brass regulators
brass regulators

Note: Option shown in the [ ] bracket are special, Please contact Sales HQ/Manufacturing.
