FEATURES :

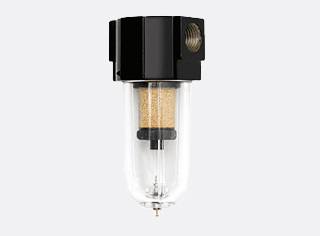

- Shavo's VAYUTM Miniature Series Air Filter provides effective liquid and solid seperation
- Aluminium alloy diecast body, powder-coated for longer life
- Threaded Transparent Polycarbonate bowl.
- Manual-drain has finger-operated plunger for easy draining.
- Also optional metal (non-transparent) bowl.
| Parameters | Specifications | |
|---|---|---|
| Pipe Threads | G 1/8, 1/4 Parallel (F) | - Standard |
| BSPTr. / NPT | - Optional | |
| Filter Element Size | 5, 25, 40 micron. | |
| Element Material | Plastic (Polypropylene) | - Standard |
| Sintered Bronze | - Optional | |
| Body Material | Aluminium Alloy die-cast | |
| Bowl Material | Transparent Polycarbonate | - Standard |
| Metal Zinc diecast | - Optional | |
| Maximum Inlet Pressure | with P.C. Bowl Manual and Automatic Drain |
: 150 psig (10.5 bar) |
| with Metal Bowl Manual Drain | : 250 psig (17.5 bar) | |
| with Metal Bowl Automatic Drain | : 150 psig (10.5 bar) | |
| Maximum Operating Temperature (ambient) |
with PC Bowl |
: 50° C (125° F) |
| with Metal Bowl | : 800 C (1750 F) | |
| Standard Nominal Flow Rate at 6 bar (87 psi) supply pressure and 1 bar (14.5 psi) pressure drop |
G 1/8 |
: 45 scfm (21 dm3 / sec) CV (0.85) |
| G 1/4 | : 45 scfm (21 dm3 / sec) CV (0.85) | |
| Drain | Manual |
- Standard |
| Automatic | - Optional (operates only when flow change occurs) | |
+ Values indicated are with 40 micron elements, with finer elements these values will be lower.
Note: Automatic Drain and Semi-Automatic drain available with Nitrile Elastomer Only.
| Size | Flow (dm3/S) | Element (um) | Drain | Bowl | Model |
| G 1/8 | 45 scfm (21 dm3 / sec) | 40 | Auto Auto Manual Manual |
Transparent Metal Transparent Metal |
SF10G-1G-A2T SF10G-1G-A2M SF10G-1G-M2T SF10G-1G-M2M |
| G 1/4 | 45 scfm (21 dm3 / sec) | 40 | Auto Auto Manual Manual |
Transparent Metal Transparent Metal |
SF10G-2G-A2T SF10G-2G-A2M SF10G-2G-M2T SF10G-2G-M2M |

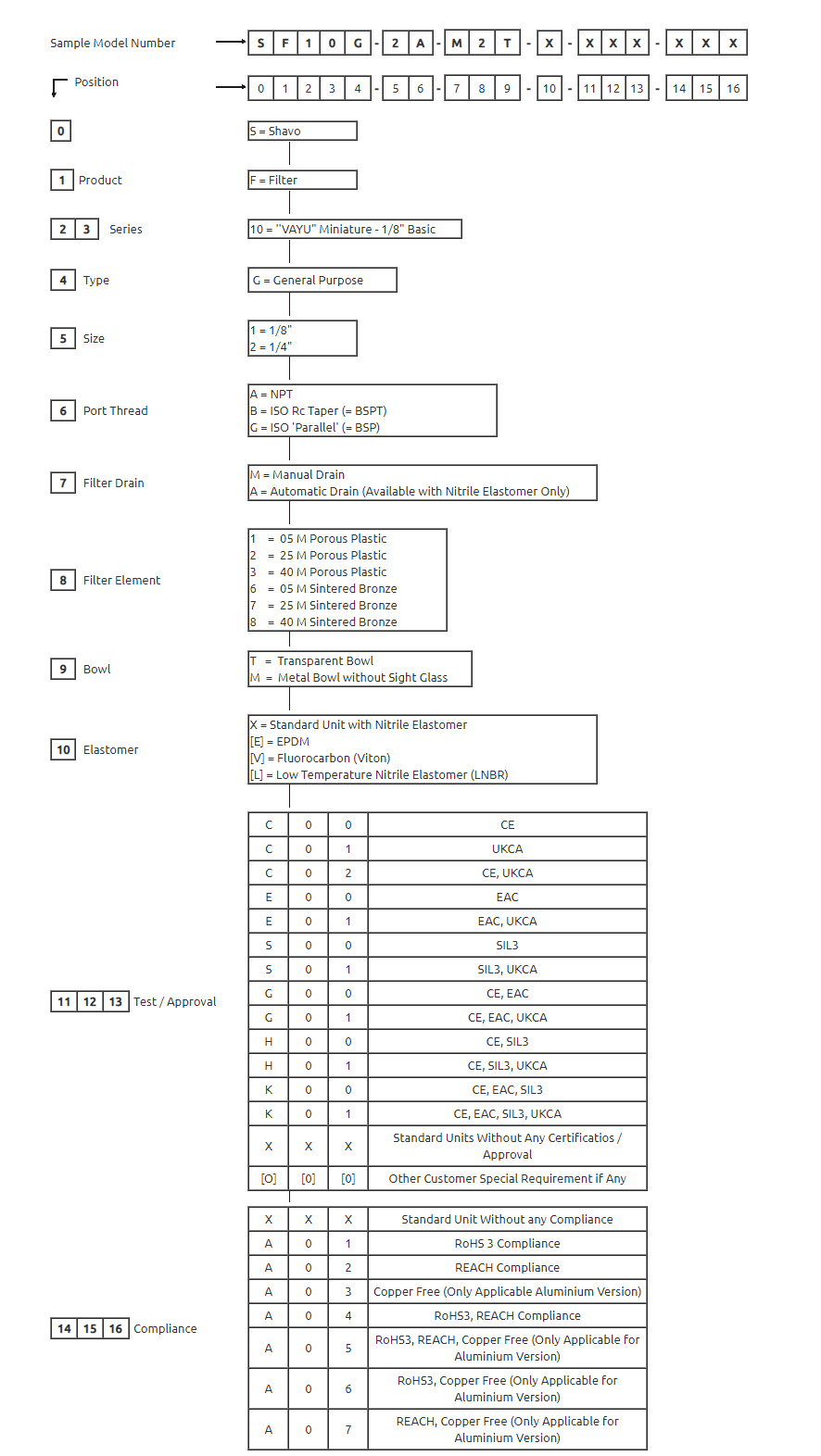

OPTION SELECTOR :
