FEATURES :

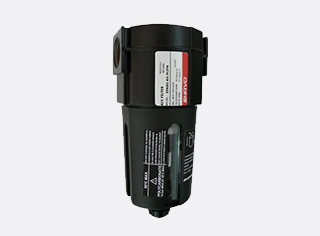

- Shavo's VayuTM Series Standard range general purpose Filter removes upto 99% of the liquid water.
- Design of the filter element gives both surface and depth filtration for cleaner air.
- Choice of elements, bowls and drains to suit all applications.
| Parameters | Specifications | ||
| Pipe Threads | *G 1/4, G 3/8 , G1/2, 3/4, 1 Parallel (F) | - Standard | |
| BSPTr. / NPT | - Optional | ||
| Filter Element Size | 5, 25, 40 micron | ||
| Element Material | Plastic (Polypropylene) | - Standard | |
| Sintered Bronze | - Optional | ||
| Body Material | Al. Alloy Die cast | ||
| Bowl Material | Transparent Polycarbonate with bowl guard |
- Standard | |
| Al. Alloy Metal with sight glass |
- Optional | ||
| Maximum Inlet Pressure | with P.C. Bowl Manual Drain, Automatic Drain and Semi-Automatic Drain | : 150 psig (10.5 bar) | |
| with Metal Bowl Manual Drain | : 250 psig (17.5 bar) | ||
| with Metal Bowl Automatic Drain and Semi-Automatic Drain | : 150 psig (10.5 bar) | ||
| Maximum Operating Temperature (ambient) | with P.C. Bowl | 50º C (125º F) | |
| with Metal Bowl | 80º C (175º F) | ||
| Standard Nominal Flow Rate at 87 psi (6 bar) supply pressure and 14.5 psi (1 bar) pressure drop |
G 1/4 | 84 scfm (40 dm³/sec) CV (1.53) | |
| G 3/8 | 187 scfm (89 dm³/sec) CV (3.54) | ||
| G 1/2 | 309 scfm (147 dm³/sec) CV (5.82) | ||
| G 3/4, G 1 | 470 scfm (224 dm³/sec) CV (8.87) | ||
| Drain | Manual | - Standard | |
| Automatic | - Optional | ||
| Sem-Automatic | - Optional | ||
+ Values indicated are with 40 micron elements, with finer elements these values will be lower.
Note: Automatic Drain and Semi-Automatic drain available with Nitrile Elastomer Only.
| Size | Flow (dm3/s) | Element(um) | Drain | Bowl | Model |
|---|---|---|---|---|---|
| G 1/2 | 309 scfm (147 dm³/sec) |
40 | Auto Manual |
Transparent Transparent |
SF60G-4G-A2PN SF60G-4G-M2PN |
| G 3/4, G1 | 470 scfm (224 dm³/sec) |
40 | Auto Manual |
Transparent Transparent |
SF60G-6G-A2PN SF60G-6G-M2PN |
| G 1/4 | 84 scfm (40dm³/sec) |
40 | Auto Manual |
Transparent Transparent |
SF60G-2G-A2PN SF60G-2G-M2PN |
| G 3/8 | 187 scfm (89 dm³/sec) |
40 | Auto Manual |
Transparent Transparent |
SF60G-3G-A2PN SF60G-3G-M2PN |

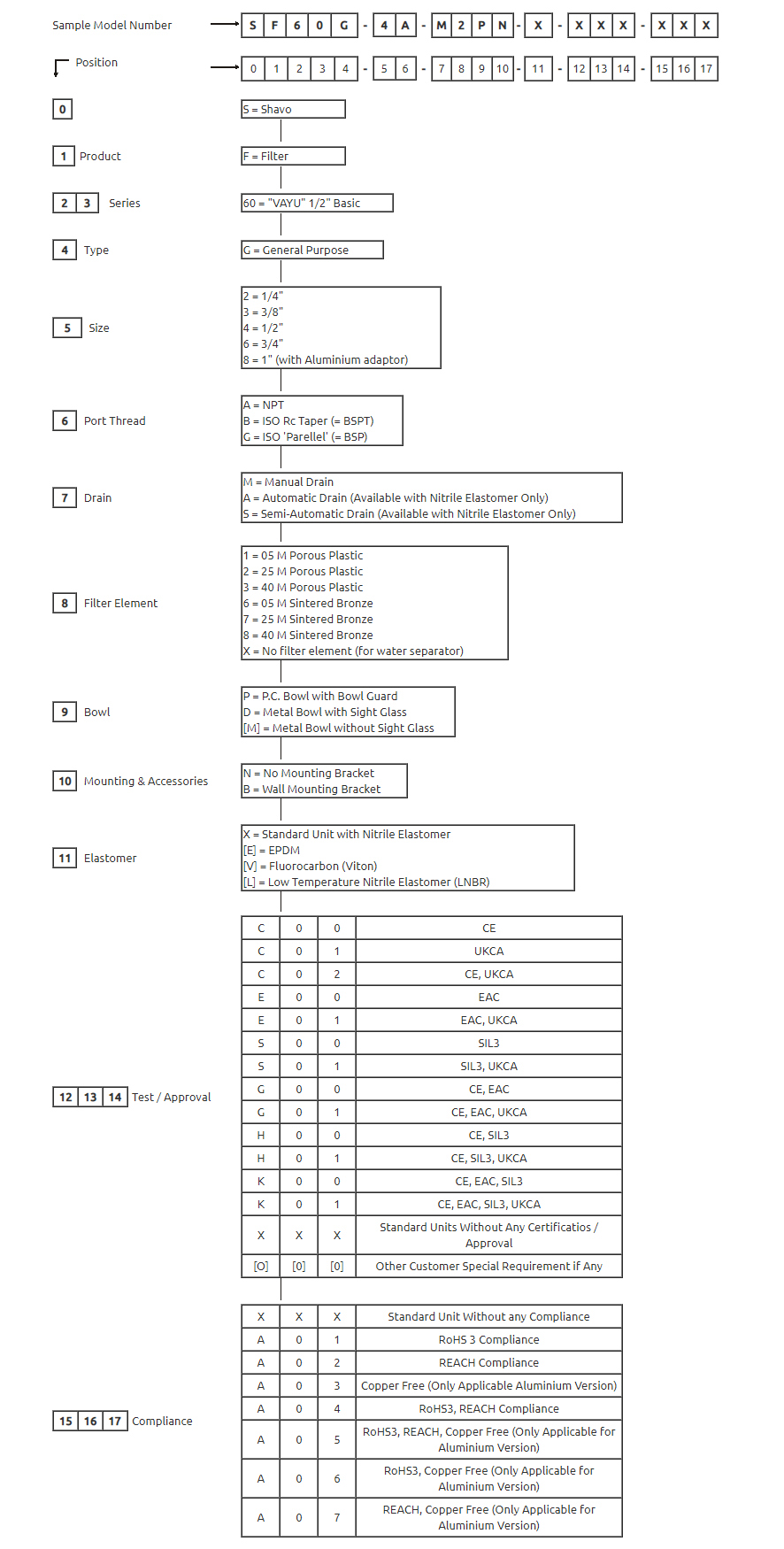

OPTION SELECTOR :
